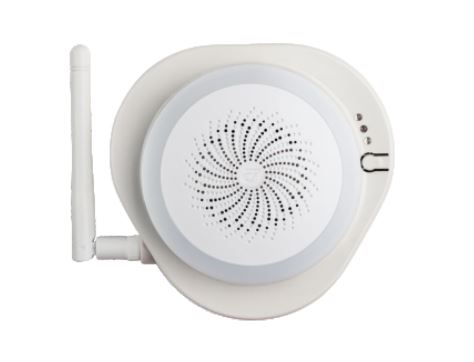

TC-ZJ402 The wireless signal extender is suitable for home wireless alarm system and industrial wireless alarm system. The repeater uses advanced wireless transceiver technology, built-in efficient anti-collision algorithm, and can set filtering rules, so that the repeater can work reliably in the system. At the same time, the repeater supports multiple groups of channels, so that the repeater can work in complex environments and in the presence of multiple hosts, realizing mutual non-interference, truly avoiding the collision of channels, and greatly improving the coverage of wireless networks.
Technical Data
All data is supplied subject to change without notice. Specifications are typical at 24V, 25℃ and 50% RH unless otherwise stated.
Main power DC5V(Power Adapter)
Standby power 3V/2400MAh
Power consumption monitoring≤9W , alarm≤2.2W
Operation indicator flash when normal
Fault indicator on when standby power fails
Communication indicator flash when forwarding info Wireless transmission
power 19dBm
Communication distance ≤50m
Communication method 470MHz FSK coded bidirectional
Operating environment temperature 10℃~+55℃
relative humidity ≤95%
Dimension 130mm in diameter H:48mm
Avoid excessihttps://www.vedardsecurity.com/wireless-signal-extender-p-103ve humidity in repeater installation position
To ensure the long-term reliability and accuracy of the repeater, the wireless performance should be checked regularly. The free warranty period of this repeater is one year, with lifetime maintenance.
