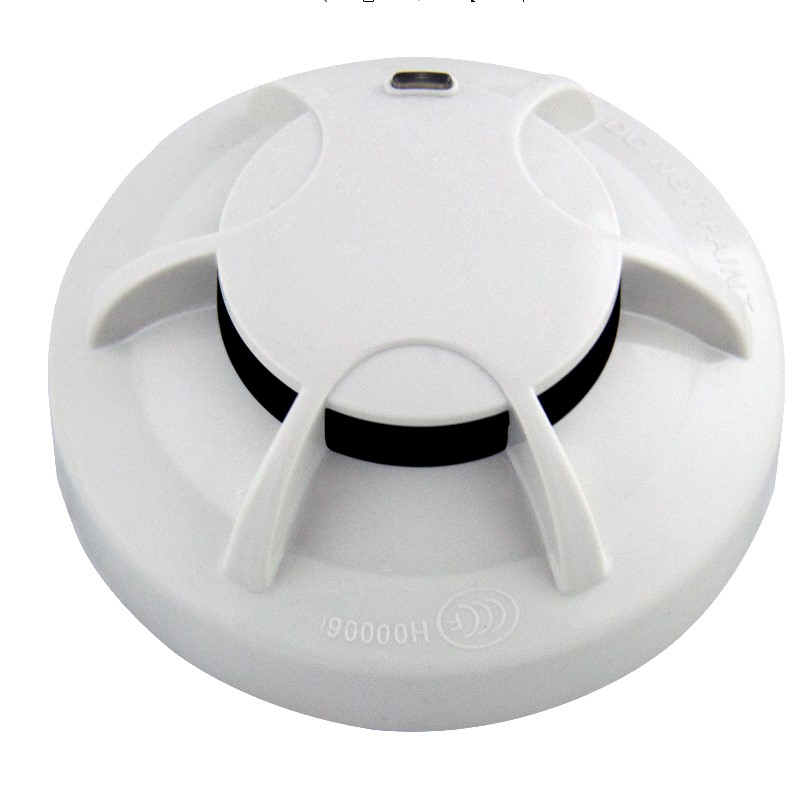

SMOKE ALARM COMPATIBLE WITH TC-5109 ADDRESSABLE FIRE PANEL

Available from Vedard Security Alarm Systems
Product Menu
View Company Profile View all Products

Product Details

LPCB Approved Intelligent smoke detector Addressable fire alarm system
works with TC series addressable fire alarm system LPCB TC-5109 alarm panel fire fighting
Infrared scattering principle
Non-polarized two-wire
Drift compensation and fault detecting function
Reporting dirt fault
Hotel, restaurant, warehouse, library, office building, teaching
building, power plant and other places
Approvals:LPCB(EN54-7) CE

Technical Specifications
Operating voltage Loop 24V(18.5V~26V)
Operating current Standby current: ≤0.3mA;Alarm current: ≤0.8mA
Operating Environment Temperature: -10°C~+55°C,Relative Humidity: ≤95%, non-condensing
Indicator Red,Flashes when polling,Illuminates in alarm
Ingress protection rating IP23
Material and color of enclosure ABS; Milky white
Coding method Electronically coding
Code range 1~255
Weight About 110g
Mounting hole distance 60mm
Dimension 100mm×51mm (with base)

Product installation manual and video at https://www.vedard.com/forum/tc-fire-alarm-system-manual.html
