I/O MODULE WORKS WITH TC-5109 LPCB INTELLIGENT FIRE ALARM

Available from Vedard Security Alarm Systems
Product Menu
View Company Profile View all Products

Product Details

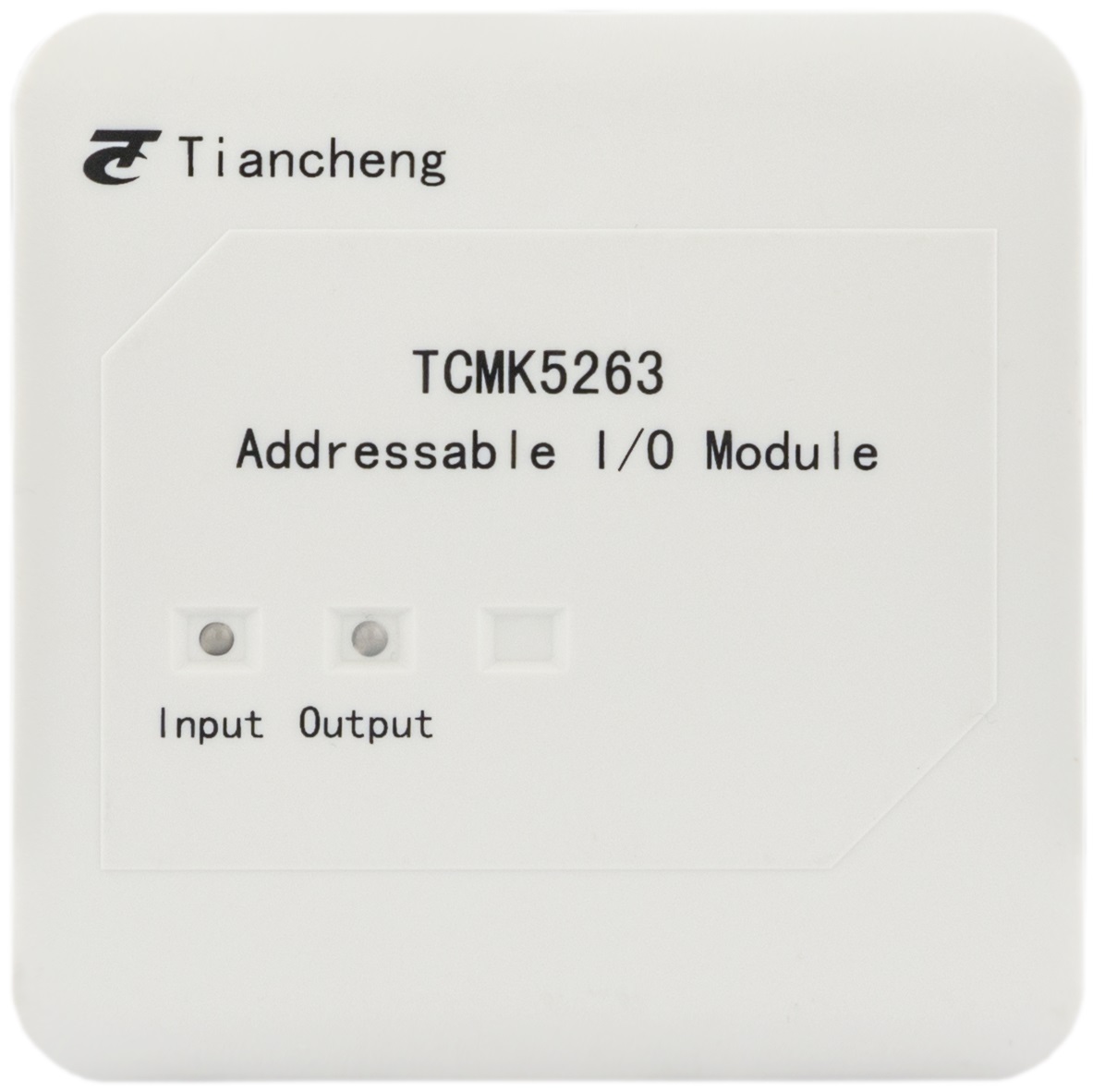

Addressable fire alarm system TC-5109 compatible Single I/O Module LPCB intelligent Module
Designed to connect with linkage devices of fire alarm controlpanel, such as exhaust valve, air valve, fire damper etc., and can receive feedback signal from device
Non-polarized two-wire
Active and passive output
The input terminal can be in field set to normally open
detecting wire or self-feedback mode, which can be
connected with passive contact
Approvals:LPCB(EN54-18) CE

Technical Specifications
Operating voltage Loop:24V (18.5V~26V);Power: DC24V (DC19V~DC28V)
Standby current Loop: ≤0.2mA;Power: ≤2mA
Starting current Loop: ≤2mA;Power: ≤22mA
Operating Environment Temperature: -10°C~+55°C;Relative Humidity: ≤95%, non-condensing
Output capacity
Passive:Capacity: DC30V/3A;Contact resistance in normal condition:
100kΩ;Closed when activated;Suitable for DC or AC12V~48V;Active
output: DC24V/1.5A
Indicator
Red,Input indicator,Flashes when polling,Illuminates in action,Output
indicator,Illuminates in action
Coding method Electronically coding
Code range 1~255
Material and color of enclosure ABS; Porcelain white
Weight About 147g (with base)
Mounting hole distance 60mm
Dimension (L×W×H) 86mm×38mm×86mm (with base)

Product installation manual and video at https://www.vedard.com/forum/tc-fire-alarm-system-manual.html
