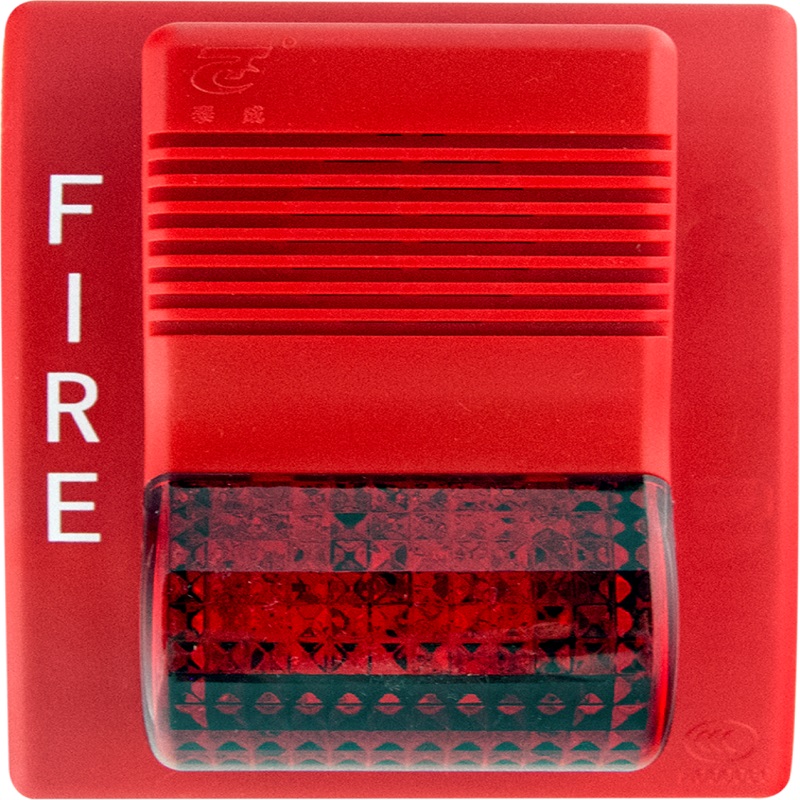

HORN STROBE FLASH AND SOUNDER WORKS WITH TC-5109 LPCB FIRE ALARM

Product Details

Fire alarm siren works with TC series addressable fire alarm system TC-5109 LPCB alarm panel.
LPCB certified addressablel horn strobe flash and sounder
Installed in public places
A kind of audio and visual alarm device used to warn people in field when fire occurs
Four wires:non-polarized signal two-wire, and non-polarized
DC24V power two-wire
Built-in microprocessor
Self-diagnostic function
Electronically coding
Approvals：LPCB（EN54-3） CE

Technical Specifications
Operating voltage Loop: 24V (16V～28V);Power: DC24V (DC19V～DC28V)
Standby current Loop: ≤0.2mA;Power: ≤0.5mA
Active current Loop: ≤1.5mA;Power: ≤50mA
Operating Environment
Indoor (Non-residential);Temperature: -10°C～+50°C;
Relative Humidity: ≤95%（40±2°C）
Sound level 80dB～115dB (A weighted)
Pitch shift periodic 3.5S～4.5S
Basic flashing frequency 1Hz～2Hz
Weight 200g
Dimension (L×W×H) 115mm×55.3mm×140mm

Product installation manual and video can be found at https://www.vedard.com/forum/tc-fire-alarm-system-manual.html
